Description
Specifications ;-

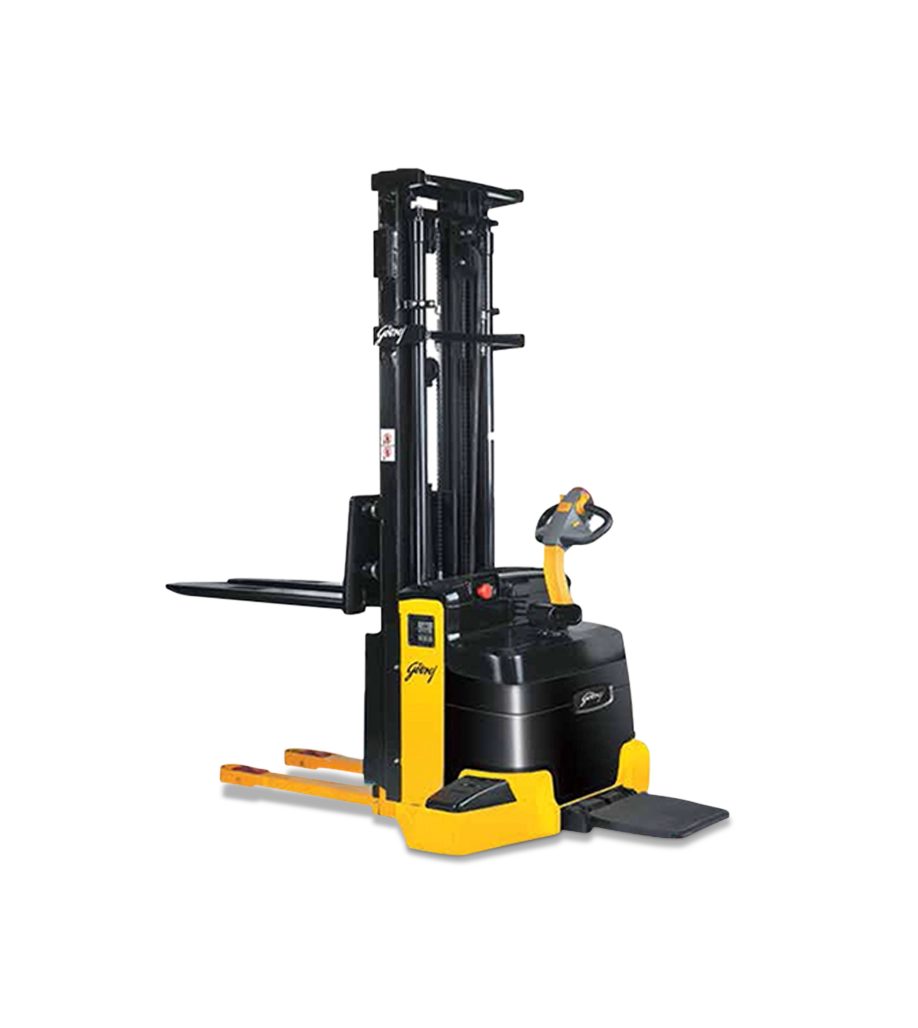

Godrej Electric Stacker – ESW1555
Capacity & Lifting
-
Rated load capacity: ~1500 kg at 600 mm load centre
-
Maximum fork lift height (h3): ~5500 mm
-
Overall height lowered (h1): ~2467 mm
-
Overall height raised (h4): ~6000 mm
Dimensions
-
Fork length: ~1150 mm
-
Overall width: ~1344 mm
-
Right angle aisle width: ~2575–3060 mm depending on pallet size
-
Turning radius: ~1600 mm (without footboard)
Performance
-
Travel speed (laden): ~5.5 km/h
-
Travel speed (unladen): ~6.5 km/h
-
Lift speed (laden): ~0.11 m/s
-
Lift speed (unladen): ~0.15 m/s
Drive & Power
-
Drive motor rating: ~1.3 kW
-
Lift motor rating: ~3 kW
-
Battery: 24 V, ~225 Ah
-
Brake: Electromagnetic
Wheels & Chassis
-
Drive wheel: PU (polyurethane)
-
Load wheels: PU
-
Caster wheels: PU
-
Steering: Tiller handle with ~175° turn angle
