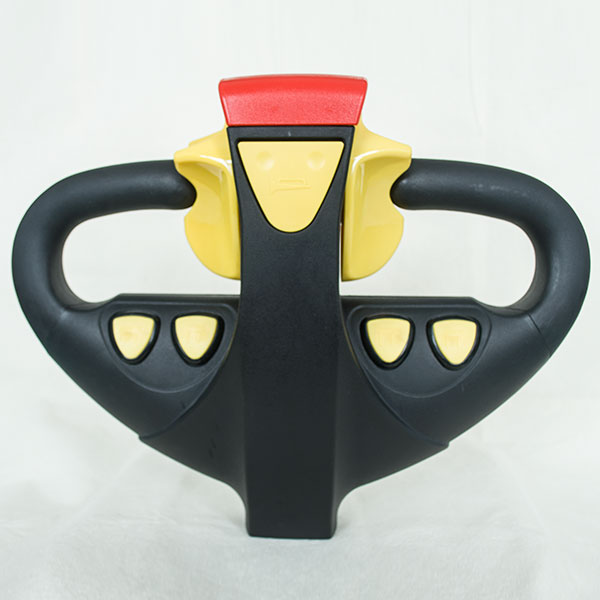

REMA make tiller handle assembly 24V Model: TH-1

Description:

This tiller head model TH-1 is packaged in a rugged housing that offer an attractive and practical method of controlling 24V electric vehicles. The tiller head TH-1 is widely applied in electric material maneuvering vehicles like forklift and pallet stacker, fully compatible with REMA / CURTIS TH-1.

Equipped with an emergency reverse switch, electronic throttle, and lift and lower switches rated at IP-67, these tiller heads are ideal for both indoor and outdoor vehicles such as pallet jacks, walkies, stackers and tow tractors.

Description

Specifications:

Model: TH-1
Operating Voltage: 24V DC nominal (19.2V DC – 28.8V DC, absolute)
Throttle Output: 0.2 – 5.0V DC nominal (0.15V DC – 5.3V DC, absolute)
Maximum current, output switches: 2A each (lift, lower, horn, turtle)
Net weight: 1.6 kg

Features:

Ergonomic design maximizes vehicle and operator productivity while minimizing operator fatigue.
Nylon PA6-GF30 housing and sealed electronics make the tiller head ideal for use in all types of environments – the tiller head can even be used reliably in the rain.
Optional proportional switches provide more precise lift and lower control, thereby improving safety.
A single electrical connector makes wiring easy to install, reducing vehicle assembly costs and eliminating costly wiring errors.
TH-1 tiller head integrates seamlessly with applicable CURTIS motor controllers, contactors, and instrumentation.
