forklift safety camera

Wireless monitor:

LCD Dimension

7″

Resolution

1024x 3 (RGB) x600

Contrast

700:1

Brightness

1000cd/m²

Viewing Angle

U:80 / D:85, R/L:85

Aspect Ratio

16:9

Channel

4 channels

Operating Frequency

2400MHz ~ 2483.5MHz(ISM band)

Receiving Sensitivity

-78dBm

Transmission Power

FCC≤26dBm

CE≤20dBm

MIC≤10dBm

Decompression Form

H.264

Modulation

FHSS

Delay

200ms

Transmission Distance

FCC≤300 M

CE≤200 M

MIC≤60 M

System Format

PAL / NTSC

Power Supply

DC 10-32V

Power Consumption

Max.10W

Loudspeaker

1W/8Ω

Operating Temp. & Humidity

-20~+70ºC,RH90%MAX

Storage Temp. & Humidity

-30~+80ºC,RH90%MAX

Wireless camera(HDW814P):

Image Device

1/2.9″ CMOS

Effective Pixels

1920 (H) x 1080 (V)

Signal to Noise Ratio

38dB

White Balance

Auto

BLC

Auto

Dynamic Range

81dB

Operation Frequency

2403MHz-2478MHz

Transmission Distance (Barrier Free)

120m(Max)

Receiving Sensitivity

-78dBm

Video Code

H.264

Transmission Power

FCC:≤26dBm   CE:≤20dBm   MIC:≤10dBm

Modulation

FHSS

Delay

130ms

RF Bit Rate

12Mbps

Operating Temp. & Humidity

–20℃ ~ 70℃, RH95%MAX.

Storage Temp. & Humidity

–30℃ ~ 80℃, RH95%MAX.

Minimum Illumination

0Lux/0.1Lux

Power Supply

DC10-32V

Power Consumption

Day:1.8W-2.5W   Night:3.6W-4.3W

Night Vision Distance

3-5M

Waterproof Rating

IP69K

Audio

No

Viewing Angle

62°

Heater

No

IR-Cut Function

No

Image Mode

Mirror/Normal

Wireless camera(HDW897):

Battery Capacity

3.6V/6400mAh

Charging Voltage

5V-12V

Charging Time

5V/8H,12V/3H

Charging Current

5V/1.5A(MAX),12V/1.5A(MAX)

Discharging Time

12H(daytime) 5H(night)

Charging Temperature

0~+40℃

Discharging Temperature

-20~+60℃

Storage Temperature

-20~+60℃

Waterproof Rating

IP69K

Dimension

116 x 80 x 66(mm)

Weight

670g

Sensor

1/2.9” CMOS SENSOR

Effective Pixels

1920 x 1080 pixels

AGC

Auto

Signal to Noise Ratio

38dB

White Balance

Auto

BLC

Auto

Operation Frequency

2403-2478MHZ

Transmission Distance (barrier free)

300m(20dBm)

Receiving Sensitivity

-78dBm

Video Decode

H.264

Transmission Power

10dBm/20dBm

Modulation

FHSS

Delay

170ms

RF Bit Rate

12Mbps

Minimum Illumination

0Lux

Night Vision Distance

8-10m

Audio

Optional

Viewing Angle

130°

IR-Cut Function

Optional

Description

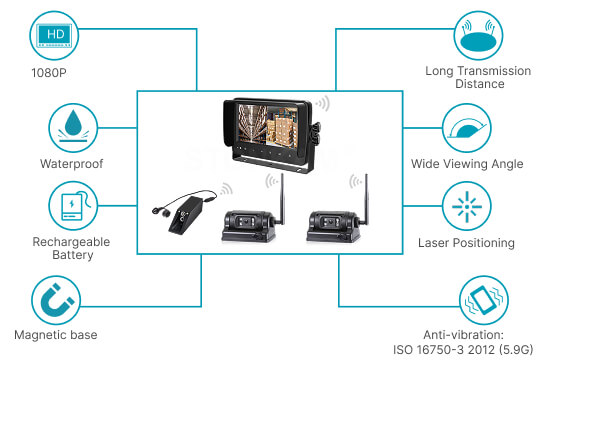

【1080P High Definition】1080P CMOS image sensor can help you get a clear view during forklift operation.
【Laser Positioning】Built-in laser positioning line helps the driver to accurately operate the fork, so as to avoid damage to the goods.
【Wide Viewing Angle】The forklift camera features a 62° viewing angle, while other wireless cameras offer a wide-angle view of up to 130°, significantly expanding the operator’s field of vision and minimizing blind spots during operation.
【Long Transmission Range】The forklift camera offers a transmission range of up to 120 meters; other wireless cameras can achieve a range of up to 300 meters in open areas, providing stable, interference-resistant signal performance.
【Waterproof & Shock-resistant】Monitor IP66 waterproof level; camera IP69K waterproof level, vibration-proof level ISO 16750-3 2012 (5.9G), durable, suitable for forklift trucks working outside.
【Easy Installation】With a magnetic housing, wireless power supply, and compact camera design, the camera offers quick and hassle-free installation.

【IPS Screen】Pixel 1024×600, high contrast, high brightness, authentic colours, so you can get clearer, sharper and more detailed pictures.
